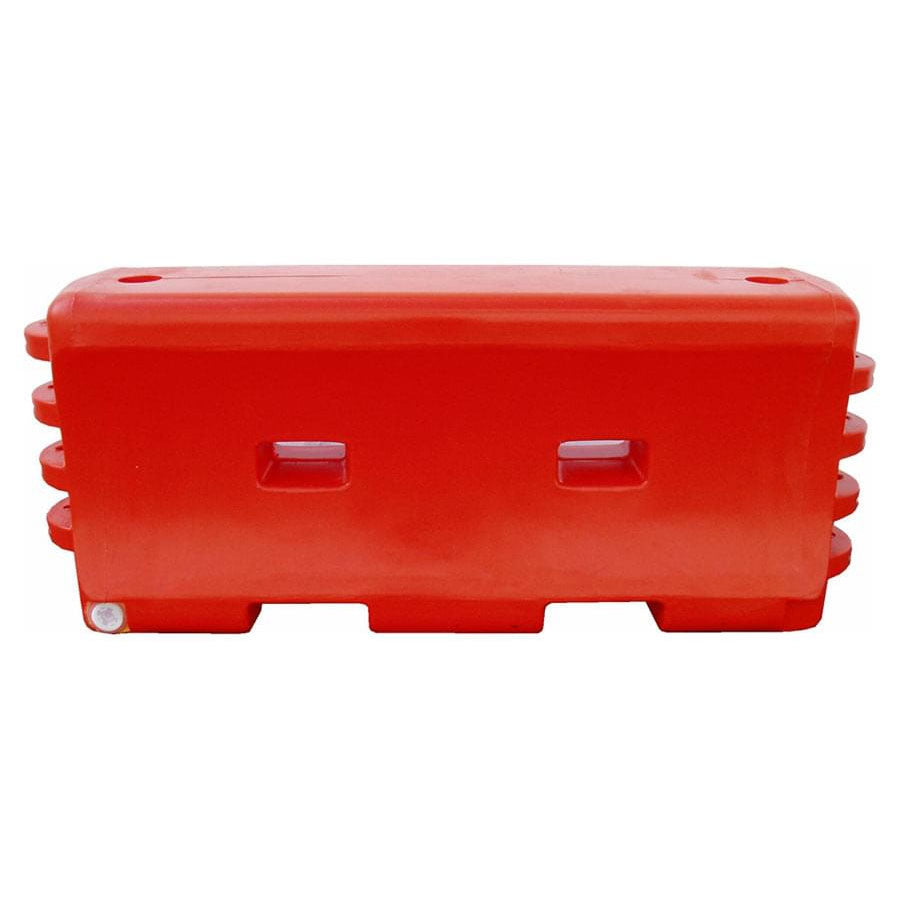

Water-Wall Water Filled Barrier Orange Long Side View Image

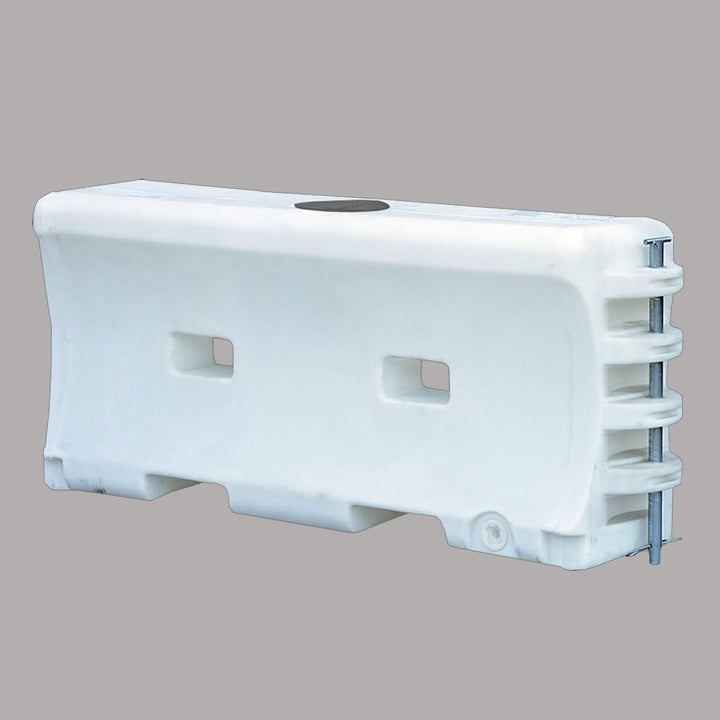

Water Wall Water Filled Barricade in White Image
Water-Wall Water Filled Barrier Orange Side View Image

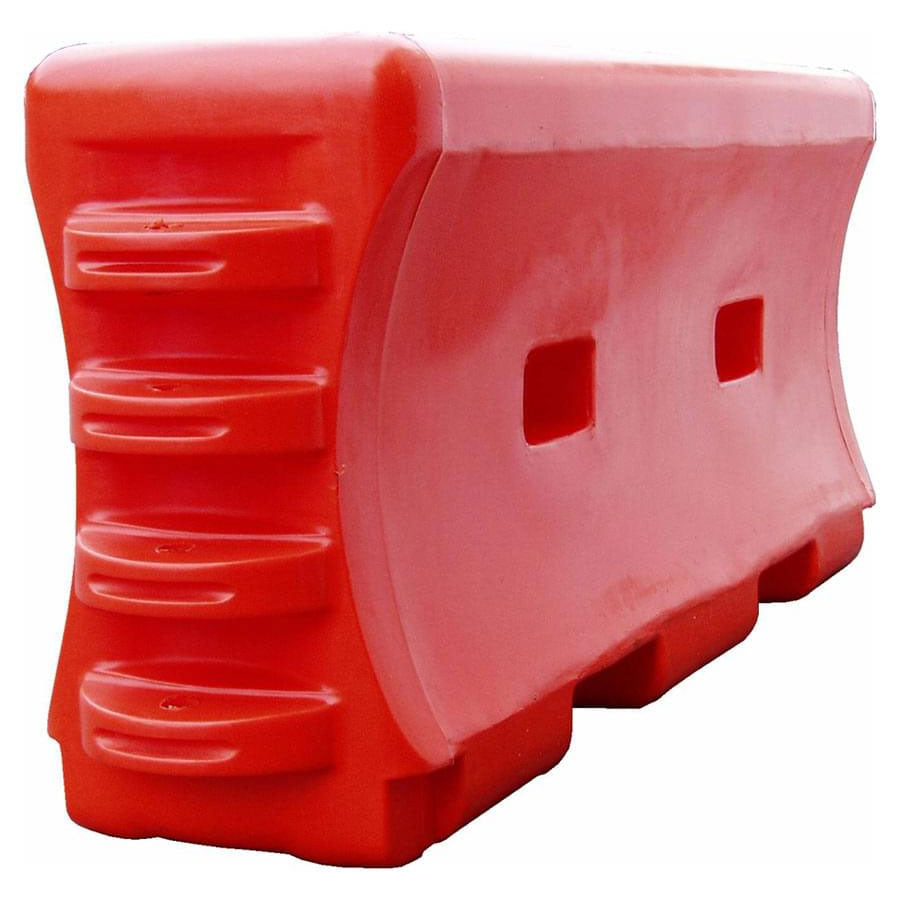

Water-Wall Water Filled Barrier Orange End View Image

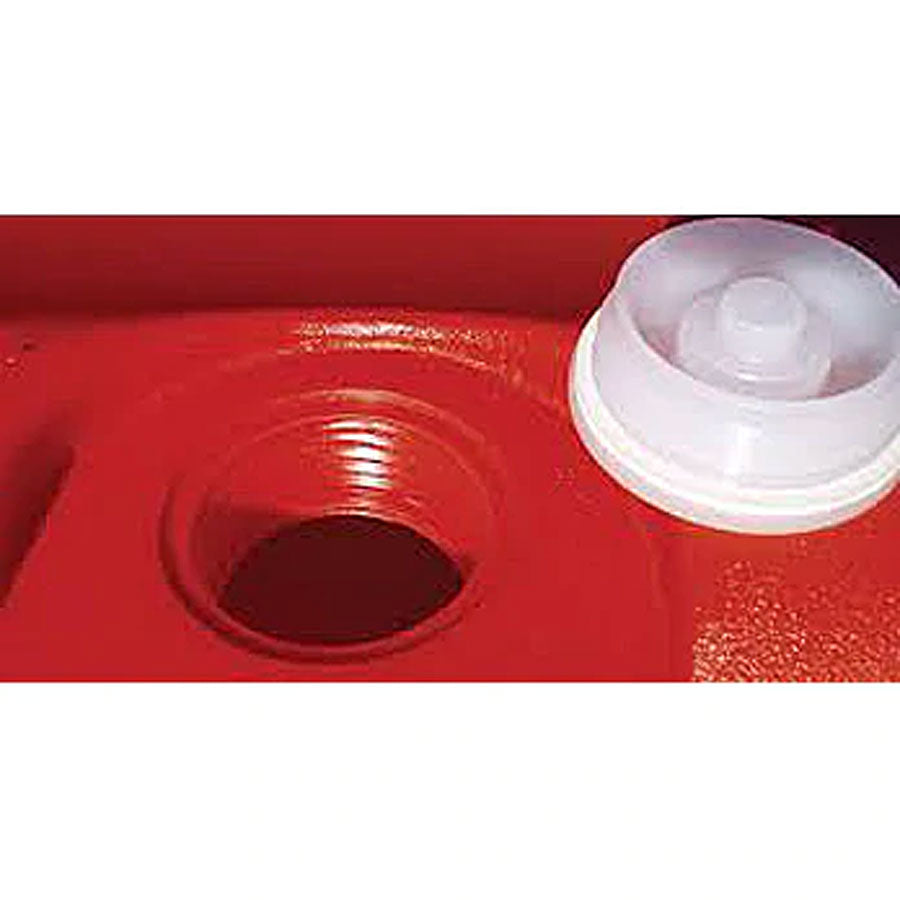

Water-Wall Water Filled Barrier Close Up of Fill Hole Image

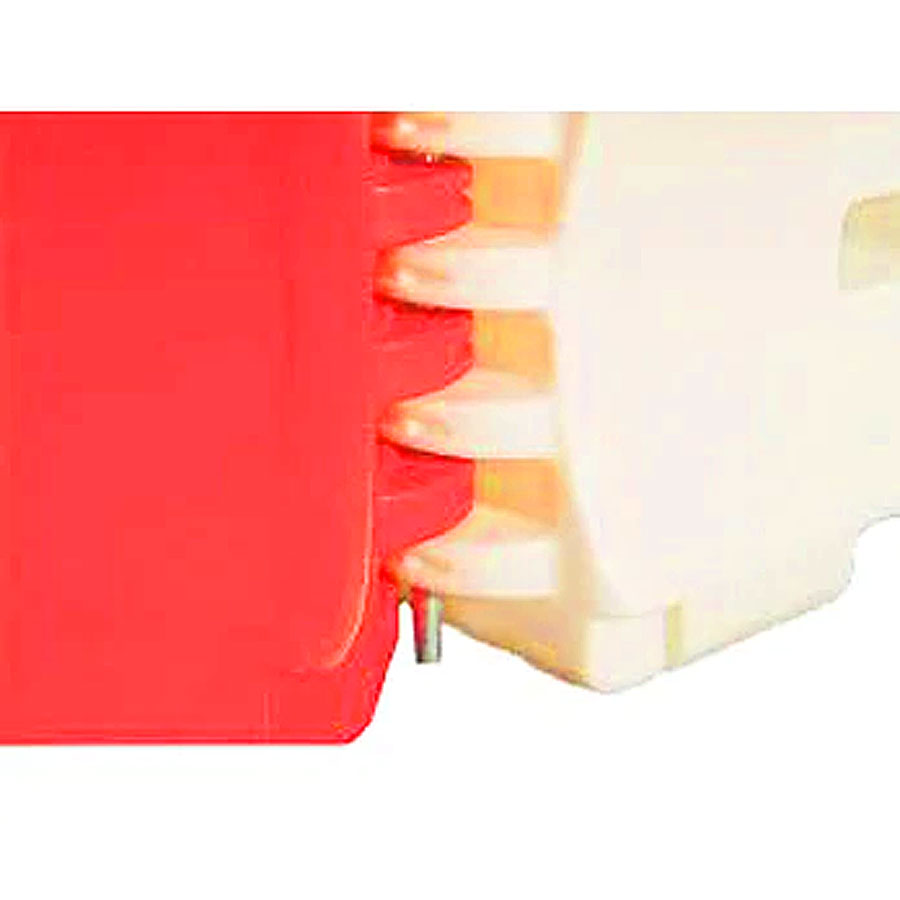

Water-Wall Water Filled Barrier Orange and White Connection Image

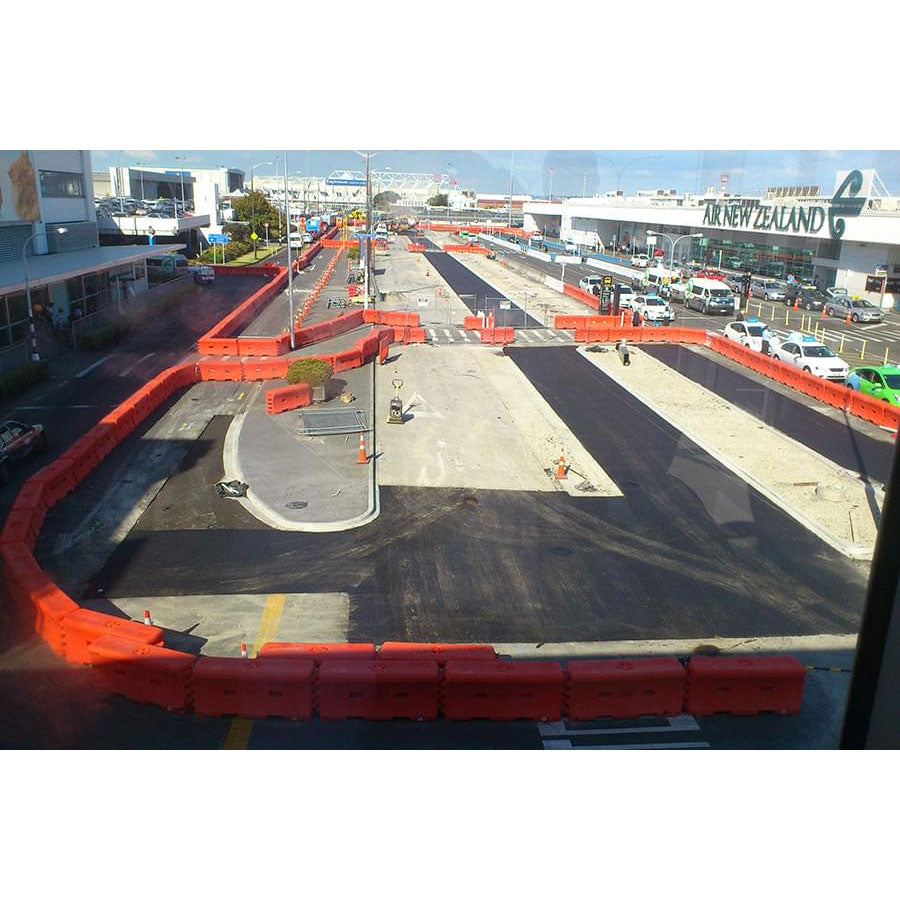

Water Filled Barriers In Use Airport Image

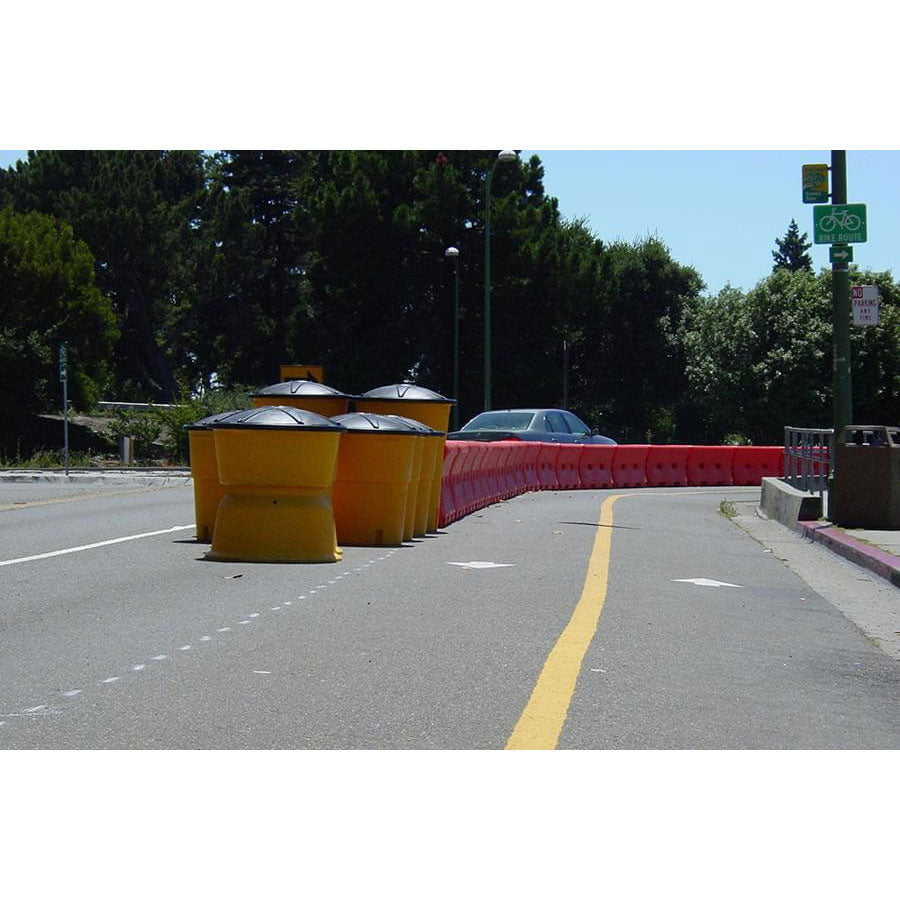

Big Sandy Crash Barrels and Water Wall Water Filled Barriers In Use to Separate Bicycle and Vehicle Traffic Image

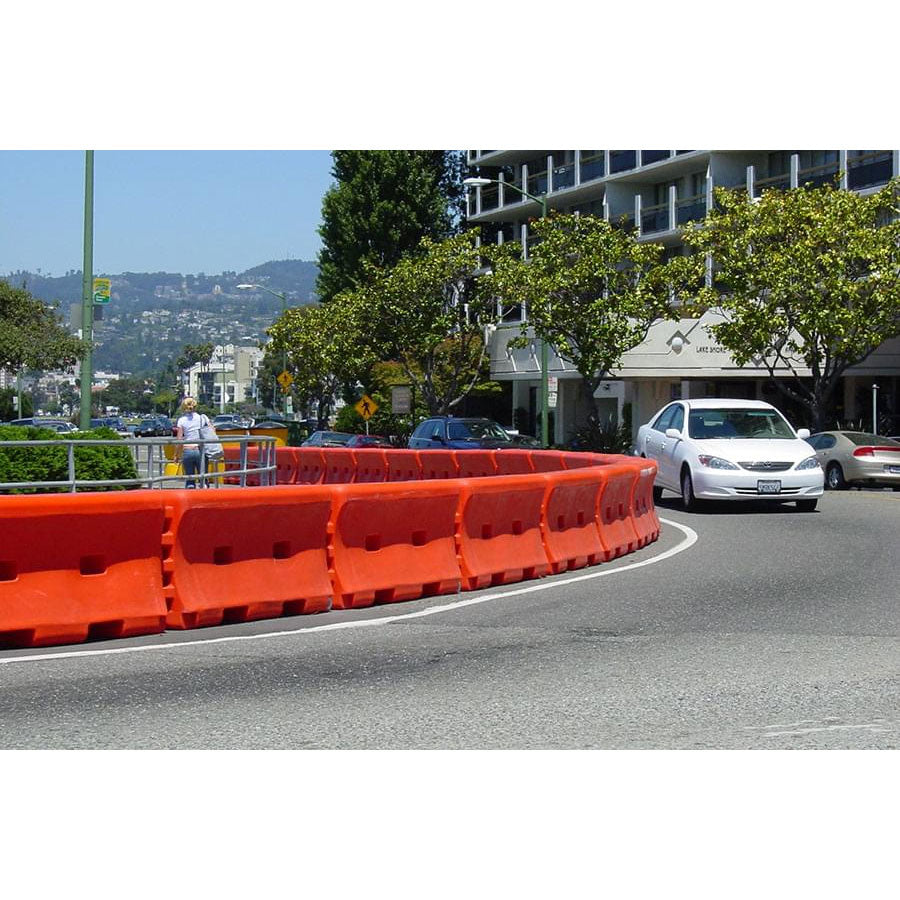

Water Wall Water Filled Barriers in Orange In Use on Road Image

Water-Wall Water Filled Barriers

Color
Price
Regular price $363.88
Regular price Sale price $363.88
Save $-363.88
/
  • Secure payments
  • In stock, ready to ship
  • Backordered, shipping soon

The Water Wall Water Filled Barrier is a durable, side protective, temporary crash barrier system that can be used in many situations from protecting the public surrounding a construction site, to work-zone safety on roads and highways.

The Water Wall Barrier can quickly and easily connect directly to the Sled end treatment which negates the need to shield or flare the end of the barrier. For added privacy and security, the water-wall can be equipped with a plastic or chain link fence (with extended connection pins).

Download Product Bulletin PDF
Download Water Wall Fence Bulletin PDF

Download Water Wall Manual PDF

FEATURES

  • Durable polyethylene plastic minimizes cracking and breaking
  • Molded through holes eliminate bowing when filled with water
  • Double wall knuckle design minimizes breakage at hinge points
  • Hinge design allows for a 30° pivot between sections
  • Large 8 in. fill hole speeds filling process, includes twist-lock plastic cap
  • New tamper resistant, corner offset drain plug with coarse buttress thread - screws in or out in only 2 ½ turns
  • Includes one steel connection pin that allows sections to be locked together
  • Forklift/Pallet Jack slots at bottom allow for easy movement and transport
  • Standard colors : Orange/red or White - additional colors available upon request




SPECIFICATIONS

  • Composition: Linear Low Density Polyethylene
  • Includes T-Pin, Cotter Pin, Drain Plug and Fill Cap
  • Dimensions:
    • Length: 72 in.. (L) / (182.88 m)
    • Width: 18 in. (W) / (45.72 cm)
    • Height: 32 in. (T) / (81.28 cm)
  • Weight:
    • Empty 80 lbs. (36.29 kg)
    • Filled 1,110 lbs. (503.49 kg)
